KBK Flexible Crane: The Ultimate Guide to Adaptive Material Handling Systems

In today’s dynamic industrial landscape, material handling needs are no longer one-size-fits-all. Factories, workshops, and warehouses often require lifting solutions that can navigate tight spaces, adapt to changing layouts, and handle light-to-medium loads with precision. Enter the KBK Flexible Crane — a modular, adaptable lifting system designed to meet these evolving demands. This comprehensive guide breaks down everything you need to know about KBK Flexible Cranes, from their design and advantages to real-world applications and maintenance best practices.

What is a KBK Flexible Crane?

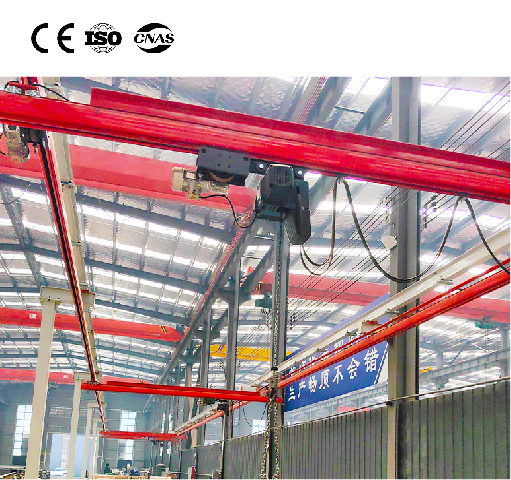

A KBK Flexible Crane (also known as a KBK Flexible Monorail or KBK Flexible Suspension Crane) is a lightweight, modular material handling system engineered for adaptability and precision in light-to-medium-duty operations. The term “KBK” (derived from the German “Kombiniert Kran,” meaning “combined crane”) reflects its modular DNA — components can be easily configured, reconfigured, or extended to match unique facility layouts.

Unlike KBK Rigid Cranes (which use fixed, inflexible rails for heavy loads), KBK Flexible Cranes feature bendable, low-weight rails that can follow curved paths, navigate around obstacles (e.g., machinery, columns), and fit into compact spaces. This flexibility makes them ideal for environments where traditional cranes (like bridge cranes) would be too bulky or rigid.

Core Components of a KBK Flexible Crane System

• Flexible Rails: Typically made of high-strength aluminum or lightweight steel, these rails can bend horizontally (for curved paths) and accommodate small vertical adjustments.
• Suspension Hardware: Adjustable hangers or brackets that attach the rail to ceilings or overhead structures, requiring minimal structural support.
• Travel Trolleys: Smooth-moving carriages that glide along the rail, supporting the hoist and load.
• Lifting Hoists: Electric chain hoists (most common) or pneumatic hoists, rated for loads from 125 kg to 2,000 kg.
• Control Systems: Pendant controls (for direct line-of-sight operation) or radio remote controls (for enhanced safety and flexibility).
• Power Supply: Integrated conductor rails or cables that deliver consistent power to the hoist and trolley, without restricting movement.

Key Advantages of KBK Flexible Crane Systems

KBK Flexible Cranes stand out for their ability to solve common material handling pain points — especially in space-constrained or dynamic environments. Here are their top benefits:

1. Unmatched Layout Flexibility

The biggest advantage of KBK Flexible Cranes is their ability to adapt to complex facility layouts. Their bendable rails can:

• Navigate 90° turns, S-curves, or custom paths to avoid obstacles (e.g., production machines, storage racks).
• Fit into narrow aisles, mezzanines, or small workshops where rigid cranes or gantries can’t operate.
• Be extended or reconfigured quickly if your production line or warehouse layout changes (e.g., adding a new workstation).

2. Lightweight Design Reduces Structural Costs

KBK Flexible Cranes weigh significantly less than rigid cranes or traditional bridge cranes. This means:

• They require minimal overhead structural support (no need for heavy-duty beams or columns).
• They’re ideal for older buildings or facilities with limited ceiling load capacity (common in small to mid-sized workshops).
• Installation is faster and less disruptive — no need for extensive structural modifications.

3. Fast Installation & Minimal Downtime

Thanks to their modular design and lightweight components, KBK Flexible Cranes can be installed in days (not weeks). Standardized bolt-on connections eliminate the need for welding or custom fabrication, reducing production downtime during setup or upgrades. For businesses with tight schedules, this is a critical cost-saving benefit.

4. Cost-Effective for Light-to-Medium Loads

KBK Flexible Cranes are optimized for loads between 125 kg and 2,000 kg — the sweet spot for most manufacturing, assembly, and warehousing tasks. Unlike heavy-duty rigid cranes (which are overkill for light loads), they offer:

• Lower initial purchase costs.
• Reduced maintenance expenses (fewer moving parts and simpler design).
• Energy efficiency (smaller hoists use less power than heavy-duty alternatives).

5. Precise Load Positioning

Despite their flexibility, these cranes deliver exceptional precision. The smooth trolley movement and low-friction rails allow operators to position loads with millimetric accuracy — critical for tasks like:

• Assembling delicate electronics (e.g., circuit boards, medical devices).
• Loading/unloading small parts onto conveyor belts.
• Placing components in tight spaces (e.g., automotive sub-assembly).

6. Improved Workplace Safety

KBK Flexible Cranes are designed with safety in mind, featuring:

• Built-in load limiters to prevent overloading.
• Emergency stop buttons on controls (pendant or remote).
• Smooth, sway-free operation (reducing the risk of load drops or collisions).
• Compliance with global safety standards (EC Machinery Directives, ISO 9001, and OSHA guidelines).

Technical Specifications of KBK Flexible Cranes

To ensure you select the right system for your needs, here are the key technical details to consider:

Load Capacity

• Standard systems: 125 kg to 2,000 kg (ideal for light-to-medium-duty tasks).
• Specialized variants: Up to 3,200 kg (for heavier loads, though with slightly reduced flexibility).

Rail & Span Options

• Rail materials: Lightweight aluminum (for maximum flexibility) or high-strength steel (for increased durability).
• Rail profiles: Single-rail (most common for simple paths) or double-rail (for added stability in curved sections).
• Maximum span between supports: 6–10 meters (varies by load capacity and rail material; aluminum rails have shorter spans than steel).

Operational Parameters

• Hoist speed: 0.5–10 m/min (adjustable for precise or fast movements).
• Trolley speed: 2–20 m/min (varies by motor type).
• Ambient temperature range: -10 °C to +40 °C (standard); optional cold-weather or high-temperature modifications available.
• Environment: Indoor use (standard); outdoor variants with weatherproofing (for warehouses with open bays).

Control Options

• Pendant controls: Best for line-of-sight operation (e.g., small workshops).
• Radio remote controls: Ideal for large facilities or when operators need to stand clear of the load (e.g., assembly lines).
• Semi-automated controls: Integratable with PLC systems for repetitive tasks (e.g., automated warehousing).

Applications of KBK Flexible Cranes

The adaptability of KBK Flexible Cranes makes them suitable for a wide range of industries and tasks. Here are their most common uses:

1. Electronics & Precision Manufacturing

Electronics factories (e.g., smartphone, laptop, or medical device production) rely on KBK Flexible Cranes to handle delicate components. The precise positioning and lightweight design prevent damage to sensitive parts, while the flexible rails navigate around workstations and conveyor belts.

2. Small-to-Mid-Sized Workshops

Machine shops, tool and die facilities, and custom fabrication shops often have limited space and changing workflows. KBK Flexible Cranes fit into tight areas, and their modular design allows quick reconfiguration when new machines or projects are added.

3. Automotive Sub-Assembly

In automotive plants, KBK Flexible Cranes are used to move small sub-assemblies (e.g., door panels, wiring harnesses) to the main assembly line. The curved rails can follow the shape of the production floor, avoiding large machinery like robotic arms.

4. Warehousing & Order Fulfillment

For warehouses with narrow aisles or mezzanines, KBK Flexible Cranes optimize vertical space. They’re used to lift small pallets, bins, or packages between levels, reducing the need for forklifts (which can’t navigate tight spaces).

5. Pharmaceutical & Food Processing

These industries require clean, hygienic material handling. KBK Flexible Cranes can be equipped with stainless steel components and food-grade lubricants, making them suitable for:

• Moving pharmaceutical ingredients (e.g., powders, vials).
• Lifting food products (e.g., baked goods, frozen items) in cleanrooms.

6. Art & Museum Installations

Museums and galleries use KBK Flexible Cranes to hang heavy artworks, sculptures, or exhibits. The precise control and flexible rails allow installers to position pieces in awkward spaces (e.g., curved walls or high ceilings) without damaging the building.

KBK Flexible Crane vs. Other Lifting Solutions

To understand why KBK Flexible Cranes are the right choice for many applications, let’s compare them to common alternatives:

How to Choose the Right KBK Flexible Crane

Follow these steps to select a system that matches your operational needs:

1. Evaluate Your Load Requirements

• Calculate your maximum load weight(add a 10–20% safety margin).
• Consider the load dimensions(e.g., length, width) — larger loads may require a double-rail system for stability.
• Determine if you need variable speed control(e.g., slow speeds for delicate parts).

2. Assess Your Facility Layout

• Map your workspace to identify obstacles (columns, machines, racks) — this will determine if you need curved rails.
• Measure available headroom(minimum 1.5 meters above the load path).
• Check your ceiling’s load capacity(KBK Flexible Cranes need 50–100 kg per support point).

3. Consider Your Environment

• For cleanrooms (pharmaceuticals/food), choose stainless steel components and food-grade lubricants.
• For cold or hot environments, opt for temperature-modified hoists and rails.
• For dusty areas (e.g., metal fabrication), select sealed bearings to prevent debris buildup.

4. Plan for Future Growth

• Choose a modular system that can be extended (e.g., add more rail sections) or reconfigured (e.g., change curve angles) as your business grows.
• Ensure the supplier offers compatible components (e.g., additional hoists, remote controls) for future upgrades.

5. Select a Reputable Supplier

Look for suppliers with:

• Experience in your industry (e.g., electronics, automotive).
• Global safety certifications (EC, ISO, OSHA).
• Local after-sales support (for maintenance and repairs).

Maintenance & Safety Best Practices

To keep your KBK Flexible Crane running smoothly and safely, follow these guidelines:

Preventive Maintenance Schedule

• Daily: Inspect the hoist hook (for cracks or wear), control buttons (for responsiveness), and rail (for debris).
• Weekly: Check suspension hardware (tighten loose bolts) and trolley wheels (for smooth movement).
• Monthly: Lubricate rail tracks and trolley bearings (use manufacturer-recommended lubricant).
• Quarterly: Test load limiters and emergency stops to ensure they work.
• Annually: Hire a certified technician to perform a full inspection (including electrical systems and structural integrity).

Safety Guidelines

• Never exceed the crane’s rated load capacity (even for short periods).
• Ensure operators are trained and certified (they should understand load balancing and emergency procedures).
• Keep the area under the crane clear of personnel (use safety barriers if needed).
• Avoid sudden movements (start/stop slowly to prevent load sway).
• Replace worn parts (e.g., frayed cables, cracked rails) immediately — use only genuine KBK components.

The Future of KBK Flexible Cranes

As industries shift toward smart manufacturing and flexible workflows, KBK Flexible Cranes are evolving to meet new demands:

• IoT Integration: Modern systems can connect to industrial IoT platforms for real-time monitoring (e.g., track hoist usage, predict maintenance needs).
• Automation: Integration with AGVs (Automated Guided Vehicles) and robotic arms for fully automated material handling (e.g., in smart warehouses).
• Eco-Friendly Designs: Lightweight aluminum rails and energy-efficient hoists reduce carbon footprints.
• Enhanced Flexibility: New rail materials (e.g., composite plastics) offer even greater bendability and corrosion resistance.

Conclusion: Why KBK Flexible Cranes Are a Smart Investment

KBK Flexible Cranes are more than just lifting equipment — they’re a strategic tool for businesses that need adaptability, precision, and cost-efficiency. Whether you’re running a small electronics workshop, a mid-sized warehouse, or a pharmaceutical cleanroom, these systems can be tailored to your unique needs.

By choosing a KBK Flexible Crane, you’ll benefit from:

• Faster installation and minimal downtime.
• Lower structural and maintenance costs.
• The ability to reconfigure your system as your business grows.
• Improved safety and productivity.

Ready to upgrade your material handling? Consult a KBK specialist today to design a flexible crane system that fits your facility, budget, and future goals.
