LB Explosion-Proof Single Girder Overhead Traveling Crane: The Complete Guide to Hazardous Environment Lifting

In industries where flammable gases, vapors, or dusts are present—such as chemical plants, oil refineries, and pharmaceutical powder facilities—standard lifting equipment poses catastrophic risks. The LB Explosion-Proof Single Girder Overhead Traveling Crane (often abbreviated as LB explosion-proof overhead crane) is engineered to eliminate ignition hazards, combining the space-saving design of single-girder cranes with strict explosion-proof standards. This comprehensive guide breaks down its design, safety features, technical specs, and how it solves critical lifting challenges in hazardous environments.

What is an LB Explosion-Proof Single Girder Overhead Traveling Crane?

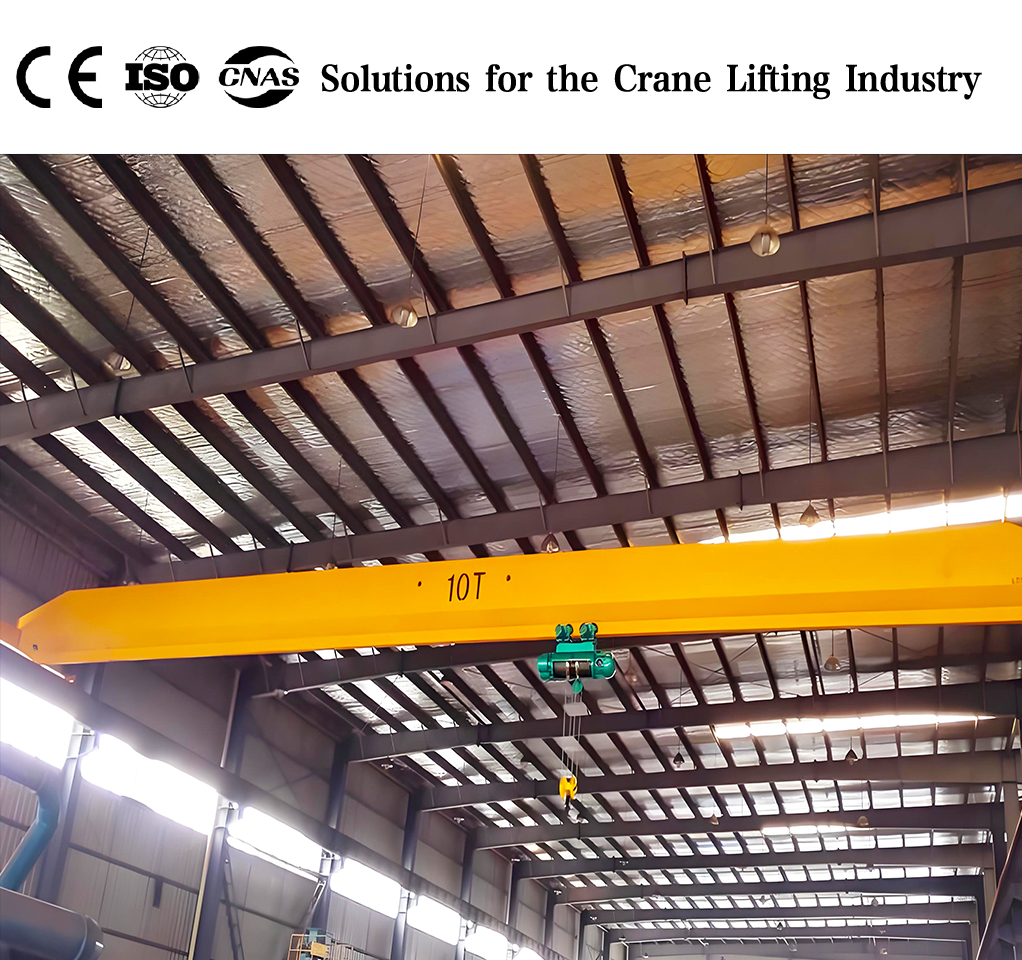

The LB Explosion-Proof Single Girder Overhead Traveling Crane is a specialized material handling system designed for hazardous areas where explosive atmospheres may form. The “LB” designation typically refers to its single-girder structure (light to medium load capacity) paired with explosion-proof components, distinguishing it from heavier double-girder explosion-proof cranes (e.g., LH series).

Unlike standard overhead cranes, every electrical and mechanical component of the LB model is modified to prevent sparks, arcs, or high temperatures that could ignite flammable substances. It complies with global explosion-proof standards, including ATEX (EU), IECEx (international), NEC (North America), and GB 3836 (China), ensuring legal compliance and operational safety in high-risk facilities.

Core Components of an LB Explosion-Proof Crane

• Single Main Girder: High-strength box-type or I-beam steel girder, lightweight yet durable for spans up to 30 meters.
• Explosion-Proof Hoist: Electric chain or wire rope hoist with (flameproof) motor, gearbox, and control panel—critical for preventing ignition.
• Explosion-Proof Traveling Mechanism: End trucks (with explosion-proof motors) that drive the crane along overhead rails, plus trolley mechanisms for hoist movement.
• Sealed Electrical System: Explosion-proof junction boxes, cables, and buttons (IP65/IP66 rated) to block flammable substances from entering components.
• Safety Devices: Overload protectors, limit switches, and emergency stop buttons—all modified for explosion-proof

Key Explosion-Proof Principles & Certifications

The safety of LB explosion-proof cranes relies on two core design strategies, paired with mandatory certifications:

1. Explosion-Proof Design Principles

• Flameproof Enclosures (explosion-proof，Ex d): Critical components (motor, control box) are housed in thick, rugged enclosures. If an internal explosion occurs, the enclosure contains the flame and cools hot gases to below the ignition temperature of surrounding substances before releasing them.
• Increased Safety (explosion-proof，Ex e): Non-essential components (e.g., wiring terminals) are reinforced to prevent arcs or overheating—no sparks = no ignition risk.
• Dust-Tight Construction: For dust-explosive environments (e.g., grain processing, plastic manufacturing), enclosures block dust ingress, eliminating fuel for explosions.

2. Mandatory Global Certifications

LB explosion-proof cranes must meet region-specific standards to be legally used:

• ATEX (EU):
  • Gas-explosive environments: Zones 1 (occasional explosions) or 2 (rare explosions) → Ex d IIB T4 Ga/Gb.
  • Dust-explosive environments: Zones 21 (occasional dust clouds) or 22 (rare dust clouds) → Ex t IIIC T135°C Da/Db.
• IECEx: International certification for global operations (accepted in 80+ countries, including Australia, Brazil, and Southeast Asia).
• NEC (North America): Class I (gases), Division 1/2; Class II (dusts), Division 1/2—equivalent to ATEX Zones.
• GB 3836 (China): National standard for explosion-proof equipment, required for domestic use in chemical, oil, and mining industries.

A valid certification mark (e.g., ATEX Ex d IIB T4) is non-negotiable—without it, the crane is illegal and unsafe in hazardous areas.

Advantages of LB Explosion-Proof Single Girder Overhead Cranes

LB models outperform standard cranes and even double-girder explosion-proof cranes in specific scenarios, making them the top choice for light-to-medium hazardous lifting tasks:

1. Uncompromising Safety in Explosive Environments

• Zero Ignition Risks: Every component (from motor to switches) is designed to avoid sparks, arcs, or high temperatures. For example, explosion-proof motors use special winding insulation to prevent overheating, while mechanical brakes are enclosed to avoid friction sparks.
• Compliance with Strict Regulations: Meets ATEX, IECEx, and local standards, eliminating legal penalties and audit failures—critical for industries like oil & gas where non-compliance risks shutdowns.

2. Space-Saving Single-Girder Design

• Low Headroom Requirement: Single-girder structure reduces the crane’s overall height, making it ideal for facilities with limited vertical space (e.g., old chemical plants or indoor storage areas).
• Lightweight Construction: Weighs 30–40% less than double-girder explosion-proof cranes, reducing stress on factory ceilings and simplifying installation—no need for heavy-duty structural reinforcement.

3. Efficient Load Handling for Light-to-Medium Tasks

• Load Capacity: 1–20 tonnes (standard), perfect for lifting drums of chemicals, oil containers, or pharmaceutical powder batches—tasks too heavy for manual handling but not requiring double-girder cranes.
• Smooth Operation: Explosion-proof trolleys and hoists offer precise speed control (0.5–10 m/min lifting speed), preventing load sway that could damage equipment or spill hazardous materials.

4. Durability in Harsh Conditions

• Corrosion Resistance: Girder and components are coated with anti-corrosive paint (e.g., epoxy resin) to withstand chemical vapors or saltwater (for offshore oil facilities).
• Sealed Components: IP65/IP66 ratings block dust, water, and chemical splashes, extending service life to 10–15 years (vs. 5–8 years for standard cranes in harsh environments).

5. Cost-Effectiveness

• Lower Initial Cost: Single-girder design reduces material and manufacturing costs vs. double-girder explosion-proof cranes—ideal for small-to-medium enterprises (SMEs) in chemical or pharmaceutical sectors.
• Reduced Maintenance: Sealed explosion-proof components require less frequent repairs; replacement parts (e.g., explosion-proof motors) are standardized, lowering long-term costs.

Technical Specifications of LB Explosion-Proof Cranes

To select the right LB model, understanding key technical parameters is critical—these specs are tailored to hazardous environment needs:

1. Load Capacity & Working Class

• Rated Load: 1, 2, 3, 5, 10, 16, 20 tonnes (standard); custom models up to 32 tonnes for heavy-duty tasks (e.g., lifting oil tanks).
• Working Class (ISO 4301): A3–A5 (medium-duty), suitable for 1,200–3,600 working hours/year—typical for batch processing in chemical plants or daily loading in oil depots.
• Safety Factor: 10:1 for the main girder and hoist components (can withstand 10x the rated load), exceeding standard crane safety benchmarks.

2. Span & Lifting Parameters

3. Explosion-Proof & Electrical Details

• Explosion-Proof Rating:
  • Gas environments: Ex d IIB T4 Ga/Gb (most common) or Ex d IIC T3 (for highly flammable gases like hydrogen).
  • Dust environments: Ex t IIIC T135°C Da/Db (for dusts like coal or aluminum powder).
• Motor Type: Explosion-proof three-phase asynchronous motors (power: 0.75 kW–37 kW), insulation class H (resists high temperatures up to 180°C).
• Control System:
  • Explosion-proof pendant control (10–15 m cable, IP65 rated) for line-of-sight operation.
  • Explosion-proof radio remote control (range: 50–100 m) for operators to stand clear of hazardous zones.
• Power Supply: 380V/3PH/50Hz (standard industrial), 440V/60Hz (North America), or 660V/3PH (mining applications).

4. Specialized Variants

• Stainless Steel LB Cranes: For pharmaceutical or food processing (dust-explosive environments), easy to clean and corrosion-resistant.
• Low-Temperature LB Cranes: Modified for cold storage (e.g., -40°C) in chemical warehouses, with winterized lubricants and motors.
• Double-Hoist LB Cranes: Two explosion-proof hoists for simultaneous lifting of two loads (e.g., moving two chemical drums at once).

Applications of LB Explosion-Proof Single Girder Overhead Cranes

LB cranes are indispensable in industries where even a single spark could cause explosions or fires. Here are their most critical uses:

1. Chemical & Petrochemical Industry

• Tasks: Lifting chemical drums, transferring solvent tanks, and loading/unloading raw materials (e.g., methanol, benzene).
• Why LB Cranes?: Chemical plants often have Zone 2 (gas) or Zone 22 (dust) atmospheres—LB cranes’ Ex d IIB T4 rating prevents ignition from motor sparks or overheating.
• Example: A benzene processing plant uses a 10-tonne LB crane to move 200L drums between mixing stations, avoiding risks of solvent vapor ignition.

2. Oil & Gas Sector

• Tasks: Handling oilfield equipment (e.g., pumps, valves), loading crude oil containers, and maintaining offshore platforms (corrosion-resistant variants).
• Why LB Cranes?: Oil depots and refineries are classified as Zone 1/2 (gas)—LB cranes’ flameproof enclosures contain internal explosions, protecting workers and infrastructure.

3. Pharmaceutical & Fine Chemical Manufacturing

• Tasks: Lifting pharmaceutical powder batches (e.g., aspirin, antibiotics), moving mixing vessels, and maintaining sterile production lines.
• Why LB Cranes?: Powder handling creates Zone 21/22 (dust) environments—LB cranes’ dust-tight design prevents powder ingress into components, eliminating dust explosion risks.
• Compliance: Stainless steel LB cranes meet GMP (Good Manufacturing Practice) guidelines, critical for pharmaceutical certification.

4. Paint & Coating Industry

• Tasks: Transferring paint tanks, lifting spray booth components, and handling flammable thinners.
• Why LB Cranes?: Paint solvents (e.g., acetone) create Zone 2 gas atmospheres—LB cranes’ explosion-proof controls avoid sparks that could ignite solvent vapors.

5. Mining & Metal Processing

• Tasks: Lifting coal dust containers, moving metal powders (e.g., aluminum, magnesium), and maintaining mining equipment.
• Why LB Cranes?: Metal powders are highly flammable (Zone 21 dust)—LB cranes’ Ex t IIIC T135°C rating prevents overheating that could trigger dust explosions.

LB Explosion-Proof Crane vs. Other Hazardous Environment Lifting Solutions

To understand why LB cranes are preferred for light-to-medium loads, here’s how they compare to alternatives:

This comparison shows LB cranes strike the optimal balance of load capacity, space efficiency, and cost for most hazardous environment lifting tasks.

How to Choose the Right LB Explosion-Proof Single Girder Crane

Selecting an LB crane requires precise alignment with your hazardous environment and operational needs. Follow these steps:

1. Assess Your Hazardous Zone Classification

• First, identify the zone:
  • Gas environments: Zone 0 (continuous explosion risk) → Not suitable for LB cranes (use specialized heavy-duty models); Zone 1/2 → Choose Ex d IIB T4 or Ex d IIC T3.
  • Dust environments: Zone 20 (continuous dust) → Avoid LB cranes; Zone 21/22 → Choose Ex t IIIC T135°C.
• Consult a safety engineer: Zone classification is legally required—incorrect classification risks safety breaches.

2. Define Load & Operational Requirements

• Maximum load weight: Add a 10–20% safety buffer (e.g., for 5-tonne loads, choose a 6-tonne crane).
• Lifting height/span: Measure your facility’s vertical space and rail length—ensure the crane fits without compromising safety.
• Speed needs: Delicate loads (e.g., pharmaceutical powders) require slow speed (0.5–2 m/min); bulk loads (e.g., chemical drums) can use faster speeds (5–10 m/min).

3. Verify Certifications for Your Region

• EU/EEA: ATEX certification (e.g., Ex d IIB T4 Ga).
• North America: NEC Class I Division 2 / Class II Division 2.
• Global operations: IECEx certification (accepted across regions).
• Avoid fake certifications: Request the manufacturer’s declaration of conformity (DoC) and verify with certification bodies (e.g., SGS, TÜV).

4. Evaluate Environmental Factors

• Corrosion risks: Choose stainless steel or anti-corrosive coated cranes for chemical/oil environments.
• Temperature extremes: Low-temperature variants for cold storage; high-temperature motors (Class H) for foundries.
• Dust levels: Dust-tight enclosures (IP66) for powder-handling facilities.

5. Select a Reputable Manufacturer

Prioritize suppliers with:

• Experience in hazardous environment cranes (e.g., Konecranes, Demag, or Chinese specialists like Nucleon Explosion-Proof Cranes).
• Local after-sales support (critical for emergency repairs in high-risk facilities).
• Warranty coverage (minimum 1 year for explosion-proof components; 2 years for the main girder).

Maintenance & Safety Best Practices for LB Explosion-Proof Cranes

explosion-proof equipment requires specialized maintenance—incorrect care can invalidate certifications and create risks. Follow these guidelines:

Preventive Maintenance Schedule

• Daily:
  • Inspect explosion-proof enclosures for cracks or loose bolts (even small gaps can let flammable substances enter).
  • Test emergency stop buttons and limit switches (ensure they cut power instantly).
  • Check hoist hooks for deformation (use a magnetic particle test quarterly for heavy loads).
• Weekly:
  • Clean electrical connections with a dry cloth (never use water or chemical cleaners).
  • Lubricate trolley wheels and hoist chains with – grade lubricants (e.g., mineral oil-based, non-flammable).
  • Verify explosion-proof marks (e.g., ATEX Ex d) are intact—faded marks may cause audit issues.
• Monthly:
  • Test overload protection (lift 110% of rated load—crane should shut off automatically).
  • Inspect cables for fraying or damage (replace if insulation is cracked).
• Annually:
  • Hire a certified technician to perform a full audit, including:
    • Pressure testing of flameproof enclosures (to verify they contain explosions).
    • Electrical insulation resistance testing (per IEC 60079-1).
    • Recertification of components (required to maintain ATEX/IECEx compliance).

Safety Guidelines

• Operator Training: Only certified operators (trained in equipment) should use LB cranes—training must cover:
  • Hazard zone awareness (e.g., avoiding Zone 1 areas during crane operation).
  • Emergency procedures (e.g., shutting down the crane if a gas leak is detected).
  • Proper load balancing (unbalanced loads can damage components).
• No Modifications: Never alter components (e.g., drilling holes in enclosures)—this invalidates certifications and creates ignition risks.
• Hazard Monitoring: Pair LB cranes with gas/dust detectors—if hazardous levels exceed safe limits, the crane should automatically shut down.
• Replacement Parts: Use only OEM or certified parts (non-compliant parts are a major safety hazard).

Future Trends in LB Explosion-Proof Cranes

As hazardous industries adopt smarter, safer practices, LB cranes are evolving to meet new demands:

• IoT-Enabled Monitoring: Smart LB cranes with sensors that track enclosure pressure, motor temperature, and cable wear—send real-time alerts to a cloud platform (e.g., Siemens MindSphere) for predictive maintenance.
• Autonomous Operation: Integration with AI and AGVs (Automated Guided Vehicles) for fully automated lifting in high-risk zones (e.g., remote oil platforms), reducing human exposure to hazards.
• Eco-Friendly Designs: Energy-efficient motors (IE4 class) that reduce power consumption by 20–30%, aligned with global carbon reduction goals.
• Enhanced Tech: New flameproof materials (e.g., composite alloys) that are lighter than steel but equally durable, simplifying installation and reducing structural stress.

Conclusion: LB Explosion-Proof Cranes—Safety First for Hazardous Lifting

The LB Explosion-Proof Single Girder Overhead Traveling Crane is more than just lifting equipment—it’s a life-saving investment for industries where safety is non-negotiable. By combining the space efficiency of single-girder cranes with strict standards, it solves the critical challenge of lifting in explosive environments without compromising productivity.

Whether you’re operating a chemical plant, oil depot, or pharmaceutical facility, an LB crane ensures compliance with global safety norms, protects your workforce, and prevents catastrophic accidents. To select the right model, prioritize certifications, align specs with your hazard zone, and partner with a manufacturer experienced in equipment.

Ready to upgrade your hazardous environment lifting? Consult a certified LB crane specialist today to design a solution tailored to your facility’s risks, load needs, and budget.
