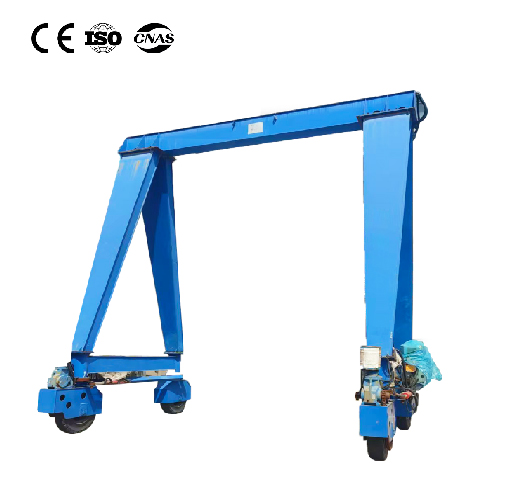

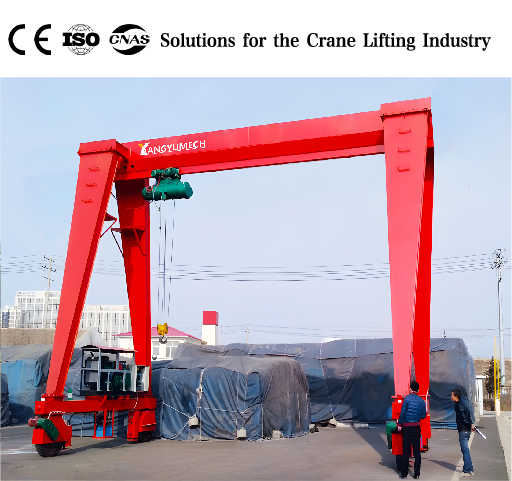

Traditional single-girder tire crane
The tire-mounted single-girder crane boasts numerous performance features. First and foremost is its high flexibility. Thanks to its tire-mounted design, it can maneuver freely in areas without fixed tracks, making it suitable for various complex working environments such as workshops, warehouses, and cargo yards. Second, they are easy to operate, with a user-friendly electrical control system design that allows operators to master the controls after minimal training. Additionally, they have moderate lifting capacity, capable of handling most medium to small-sized materials, and feature a relatively simple structure, resulting in lower manufacturing and maintenance costs. Furthermore, they have a small footprint, enabling them to operate normally in confined spaces and improving space utilization.
With the continuous development of industrial technology, tire-mounted single-girder cranes are also moving towards intelligence and automation. Future cranes may be equipped with more advanced sensors and control systems to achieve functions such as automatic positioning and automatic handling, further improving operational efficiency and safety. At the same time, there will be greater improvements in energy conservation and environmental protection, with the adoption of more efficient power systems to reduce energy consumption and environmental pollution.
Description
A tire-mounted single-girder crane is a lightweight lifting device that uses tires as its traveling mechanism. With its unique design and flexible performance, it occupies an important position in the field of material handling.
From a structural perspective, it features a high-quality steel main beam as its core load-bearing component, paired with a simple electrical control system and lifting mechanism. The overall structure is streamlined yet stable. Unlike traditional rail-mounted cranes, its tire-mounted design frees it from the constraints of fixed tracks, allowing it to move freely in various locations such as workshops, warehouses, freight yards, and construction sites. It is particularly suitable for scenarios that require frequent changes in working positions.
In terms of performance, its lifting capacity is suitable for small and medium-sized material handling needs, and it is easy to operate. Staff can master its operation after a short training session. At the same time, its compact structure allows it to operate flexibly in confined spaces, greatly improving site utilization. In addition, compared with large lifting equipment, the manufacturing and daily maintenance costs of tire-type single-girder cranes are lower, saving companies a lot of money.
Widely used in mechanical manufacturing, automobile production, warehousing and logistics, construction, and other industries, it can easily handle the precise handling of parts, rapid loading and unloading of goods, and efficient transfer of building materials. With the development of technology, this type of crane is gradually upgrading towards intelligence and energy efficiency, and will play a greater role in improving work efficiency and ensuring operational safety in the future.
Features
Outstanding mobility: The tire-type walking device is its core advantage, completely freeing it from the restrictions of fixed tracks. Whether on flat workshop floors, open cargo yards, or slightly sloped construction sites, it can move around flexibly, making it particularly suitable for scenarios that require frequent changes of work location and greatly improving site adaptability.
Streamlined and stable structure: With a single high-quality steel main beam as the core load-bearing structure, combined with a compact hoisting mechanism and electrical control system, the overall layout is simple. This design ensures sufficient load-bearing capacity while reducing unnecessary components, thereby reducing the weight of the equipment and enhancing operational stability.
Easy to operate and learn: The control system is designed to be user-friendly, with simple and intuitive operating procedures. Staff members do not need extensive professional training to quickly master lifting, moving, and turning operations, enabling them to quickly begin actual work and reducing human resource training costs.
Significant cost advantage: Compared with large lifting equipment or rail-mounted cranes, its manufacturing cost is lower. At the same time, due to its simple structure, daily maintenance and servicing are less difficult, and the cost of replacing parts and maintenance expenses are also relatively low, enabling companies to effectively save on long-term operating expenses.
High space utilization: Its compact structure allows it to operate freely even in confined spaces. In environments with limited space, such as workshops and warehouses, it can accurately transport materials without taking up too much space, significantly improving space utilization efficiency.
Suitable for small and medium-sized operations: The lifting capacity is specifically designed for small and medium-sized material handling, accurately matching the transfer needs of common parts, goods, and building materials in industries such as machinery manufacturing, automobile production, and warehousing and logistics. It is highly efficient within its applicable range.

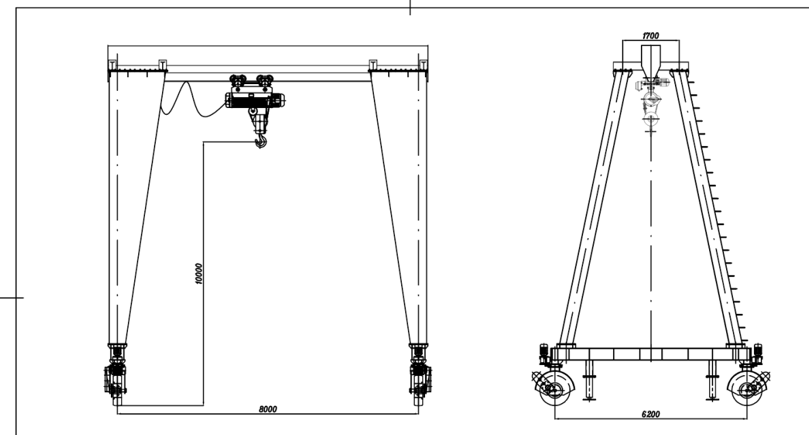

Technical Data
| Capacity | 1t | 2t | 3.5t | 5t | 10t | 16t | 20t | |
| Span | 5-10m | 6-12m | 7-14m | 8-16m | 10-18m | 12-20m | 12-22m | |
| Lifting height | 4-8m | 5-10m | 6-12m | 6-14m | 8-16m | 8-18m | 10-18m | |
| Work Duty | A3 | A3-A4 | A4 | A4-A5 | A5 | |||
| Lifting speed | 8/0.8m/min | 6/0.6m/min | 5/0.5m/min | 4/0.4m/min | ||||
| Hoist Traveling Speed | 15-25m | 15-30m | 20-30m | |||||
| Crane Traveling Sprrd | 5-10m | 5-8m | 3-6m | 3-5m | ||||
| Rail | 混泥土硬化地面 | 钢筋混泥土地面 | ||||||
Components
-
European Electric Hoist
Designed with international FEM standards.
Its height is low, occupying little space. Frequency control, smooth operation.
Maintenance free. -
Main Girder
Main Girder will have sandblast derusting and painted with zinc rich epoxy primer.
Main Girder is cut by plasma numerical control cutting machine.
The butt weld of tension flange shall undergo ultrasonic or x-ray flaw detection as specified. -
Ground Girder
Ground Girder will have sandblast derusting and painted with zinc rich epoxy primer.
The wheels of ground girder are produced in special vacuum casting workshop which make wheels more elastic and outer surface hard-wearing and durable. -
Control model
Can use control handle with pendant line, wireless remote control, or cabin control.
