Copperhead Conductor Rails
Copperhead Conductor System: a copper bar mounted onto a T-shaped steel section. The copper bar transfers the electrical current, and the T-bar provides greater strength and more reliable electrical contact.

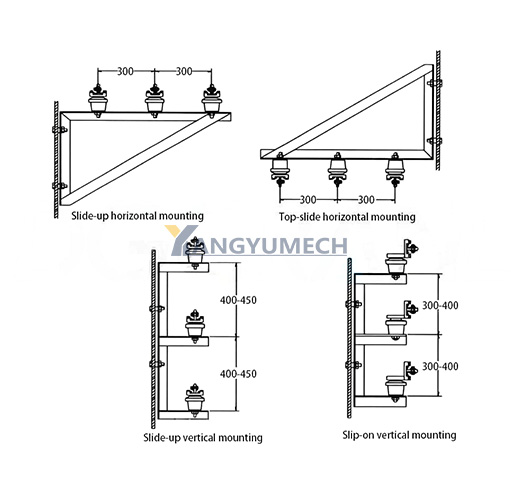

It uses a corresponding high-strength insulator for support to form a conductor rail for the electrified movement of various cranes and machinery.
It has reliable operation, low impedance, small electrical loss, energy saving, and is widely used in harsh environments such as high temperature and highly corrosive gases, such as steel mills, chemical plants, etc.
Description
Our primary customers include all businesses that use lifting equipment, particularly smelters, foundries, and steel mills, as well as transshipment and dock companies, shipyards, coking plants, and the cement industry. Our conductors and assemblies are designed to handle the current loads required by our customers under the most demanding conditions.
Features
1. Copperhead Rails ensure an efficient and continuous contact.
2. There is no sparking. Increased safety.
3. The easy maintenance is a proven low factor.
4. No losses due to interruption of service, no downtime.
5. Negligible wear – almost unlimited life of conductors.

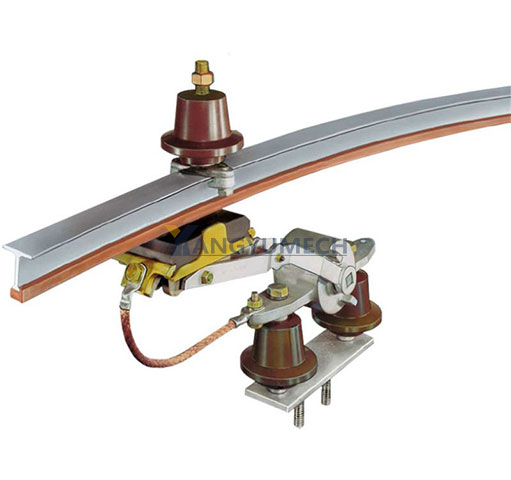

6. Much lower resistance between copperhead and carbon pick- up shoe.
7. Curved conductive rails can be provided upon request and can be customized according to your specifications.
8. Curved or bent Copperhead rails available on request and customized to your precise specifications.
Technical Data
| Copper Cross Section(mm2) | Cross Section(mm2) | Equival Total Copper Conductor(mm2) | H(mm) | a(mm) | b(mm) | Nominal Current(A) |
| 100/150/200 | 266 | 138/188/238 | 36/38.3/40.8 | 15/17 | 35 | 500/630/700 |
| 100-600 | 356 | 151—651 | 46—65 | 15—23 | 50 | 630—1500 |
| 100 | 266 | 230 | 40.8 | 17 | 35 | 800 |
| 100—400 | 356 | 275—575 | 36—59.3 | 15—20 | 45 | 900—1500 |
| 60—300 | / | 358—598 | 41—49 | 22—24 | 45 | 1000—1400 |
