KBK suspension monorail cranes have emerged as the gold standard for overhead material handling. These modular systems transform how industries move loads between workstations—offering unparalleled adaptability, space efficiency, and precision. Designed for loads up to 3,200 kg (7,000 lbs), KBK monorails create optimized paths through workshops, warehouses, and assembly lines where traditional cranes cannot reach . This comprehensive guide explores their engineering, applications, and implementation strategies to help you leverage their full potential.
Standardized Components: KBK systems utilize precisely engineered rails, switches, and suspension kits that bolt together like industrial Lego®—enabling rapid reconfiguration without specialized tools .
Expandable Layouts: Start with simple straight tracks and later integrate curves, turntables, or drop sections as workflows evolve
Cold-Rolled Steel Rails: High-strength S235 RG2 steel profiles ensure minimal permanent deformation under load, with straightness tolerance <0.75 mm/m .
Aluminum Options: For cleanrooms or corrosive environments, aluminum profiles (capacity up to 2,000 kg) reduce weight by 40% while resisting oxidation.
Multi-Directional Pathing: Combine straight sections, 10°–90° curves, track switches, and turntables to navigate around obstacles or create closed-loop circuits .
Automation Readiness: Integrate semi- or fully automated drives with programmable logic controllers (PLCs) for hands-free operation .
Table: KBK Profile Selection Guide by Load Capacity & Span
| Profile Type | Headroom (mm) | Max Span at 1,000 kg (m) | Max Capacity (kg) |
|---|---|---|---|
| KBK I | 250 | 2.6 | 1,000 |
| KBK II-L | 370 | 3.7 | 2,500 |
| KBK II | 400 | 3.2 | 2,000 |
| KBK II-H | 413 | 6.7 | 3,200 |
| KBK III | 446 | 1.9 | 3,200 |
Key Performance Attributes:
Smooth Operation: Anti-friction nylon trolleys ensure noise levels <75 dB even at full load .
Media Management: Integrated cable trolleys and hose clips enable simultaneous power/fluid transfer during movement .
Temperature Range: Operates reliably from -20°C to +70°C, with optional upgrades for extreme environments .
Automotive Assembly: Transport engines or subassemblies between robotic stations with millimeter precision, reducing manual handling by 70% .
Warehouse Logistics: Create overhead networks for pallet movement, freeing floor space for storage and eliminating forklight congestion .
Aerospace Manufacturing: Position turbine blades or avionics using equipment carrier attachments for tools and measuring devices .
HVAC Installation: Suspend compressors or ductwork via manual chain hoists, enabling one-person positioning in tight spaces .
Packaging Lines: Closed-loop circuits with drop sections automate product transfer between filling and sealing stations.
KBK monorails incorporate multiple safety layers:
Structural Protections: Grade 8.8 bolts prevent joint loosening, while end-cap limit screws absorb impact forces.
Operational Safeguards:
Overload sensors automatically cut power at 110% capacity
Anti-sway controllers stabilize loads during acceleration/deceleration
Emergency stop buttons on all pendants .
Certifications: Complies with ANSI/ASME B30.11, ISO 15614 welding codes, and EC Machinery Directives .
Critical Pre-Operation Checks:
Inspect rails for cracks or corrosion
Verify load weight ≤ rated capacity
Clear personnel from lift path
Test brake function at low height .
Foundation Requirements: Mount to reinforced concrete ceilings or steel support frames (portal superstructures) where roof loads are insufficient 9[citation:14].
Environmental Factors: Avoid humid/dusty areas; maintain ambient temperatures between -20°C to +40°C for standard models 11.
Manual Systems: Chain hoists with push trolleys (ideal for infrequent lifts under 500 kg)

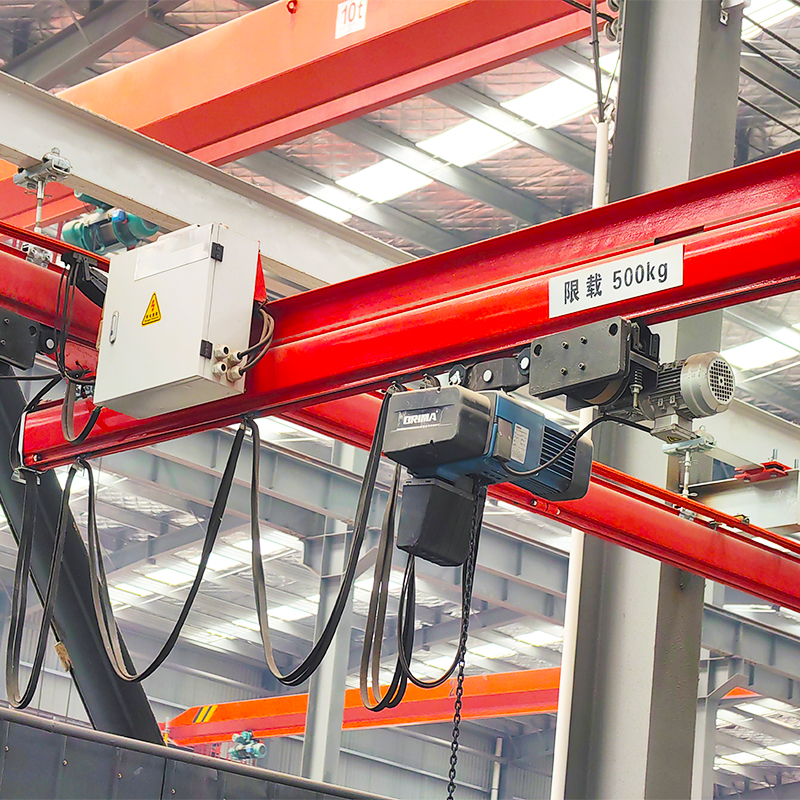

Motorized Systems: Electric chain hoists with pendant/radio control for loads >1,000 kg
Automated Solutions: Travel drives with programmable positioning for high-volume lines.
Upfront Cost: $8,000–$25,000 (vs. $50,000+ for fixed cranes)
Savings Drivers:
60% reduction in floor space used
45% faster repositioning vs. mobile gantries
No building modifications required .
IoT Integration: Load sensors wirelessly transmit weight data to warehouse management systems, enabling predictive maintenance .
Hybrid Power: Regenerative drives capture kinetic energy during deceleration, cutting electricity use by 20% .
Ergonomic Controllers: VR headsets provide 3D visualization of load paths, minimizing operator strain .
Conclusion: Engineering Tomorrow’s Workflows Today
The KBK suspension monorail crane represents the pinnacle of modular overhead handling—transforming static production spaces into dynamic, adaptive environments. By bridging the gap between fixed infrastructure and flexible automation, these systems empower manufacturers to respond swiftly to changing demands while maximizing safety and space utilization. As industries increasingly prioritize agility, KBK’s scalable architecture promises to remain at the forefront of material handling innovation.
Ready to optimize your workflow? Consult with KBK-certified engineers to design a custom monorail solution matched to your capacity, environment, and automation goals.
