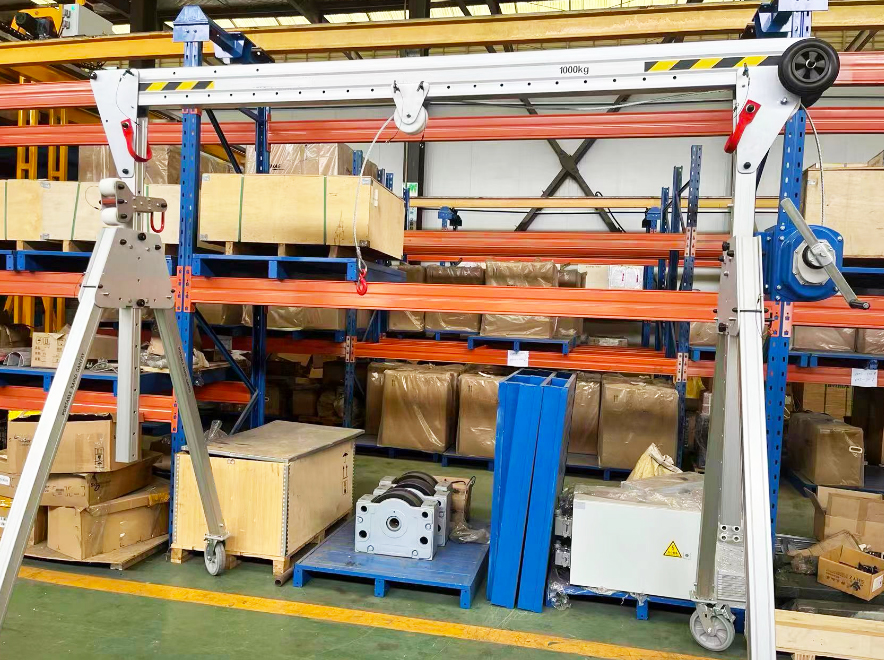

the portable folding mobile gantry crane has emerged as a game-changing solution for lifting and moving heavy loads. Combining unprecedented portability, space-saving design, and industrial-grade strength, these cranes eliminate the limitations of traditional fixed lifting systems. Ideal for workshops, construction sites, warehouses, and field service teams, folding gantry cranes deliver overhead lifting capability wherever it’s needed—then disappear for compact storage. This comprehensive guide explores their engineering, applications, and selection criteria to help you harness their transformative potential.
Tool-Free Assembly: Advanced models feature pin-and-lock systems allowing deployment in under 10 minutes without specialized tools .
Collapsible Design: Legs and beams fold into a flat-packed configuration, reducing storage volume by 60–70% compared to fixed cranes .
Lightweight Construction: Aluminum alloy models (e.g., 6061-T6) weigh 50% less than steel cranes while maintaining capacities up to 3 tons .
Integrated Mobility: Heavy-duty casters include dual-locking systems (swivel + roll) for stability during lifts and effortless repositioning .
Telescopic Beams: Manual, hydraulic, or electric height adjustment (e.g., 3.4m to 6.2m) accommodates doorways, containers, and tall machinery .
Configurable Spans: Modular components support span customization from 2.5m to 10.5m for irregular workspaces .
Marine-Grade Aluminum: Ideal for cold storage, cleanrooms, or coastal environments due to natural oxidation resistance.
Protective Coatings: Steel models feature ISO 8501-grade shot blasting and 3-layer paint systems for outdoor durability .
Table: Performance Comparison by Model Type
| Model Type | Capacity Range | Max Height | Power Options | Primary Use Cases |
|---|---|---|---|---|
| Light-Duty Aluminum | 0.5–3 tons | 4.5m | Manual/Pendant | HVAC, workshops, labs |
| Medium-Duty Steel | 3–10 tons | 6.5m | Electric/Pendant | Warehouses, manufacturing |
| Heavy-Duty Adjustable | 10–20+ tons | 8m+ | Motorized/Remote | Ports, construction sites |
Construction Sites: Move between foundation work, steel erection, and truck loading; avoid costly downtime of fixed cranes .
Warehouse Logistics: Handle palletized goods, load containers, and reposition inventory without permanent infrastructure .
HVAC/Maintenance: Install RTUs or service machinery in tight spaces; collapse for transport in service vans .
Aerospace/Defense: Assemble sensitive components with precision-controlled electric hoists in hangars .
Event Production: Rig stages and lighting trusses, then disassemble post-event without damaging floors .
Modern folding gantry cranes integrate critical safety technologies:
Overload Protection: Automatic cutoffs trigger at 110% of rated capacity to prevent structural stress .
Anti-Tip Systems: Outrigger stabilizers and low-center-of-gravity designs ensure lateral stability .
OSHA/ASME Compliance: Adherence to standards like ANSI/ASME B30.2 and ISO 15614 welding codes .
Assess Load & Environment:
Indoor/cleanroom: Choose aluminum with polyurethane wheels.
Outdoor/rough terrain: Opt for steel with pneumatic tires .
Prioritize Adjustability:
Frequent height changes? Electric-adjust beams save labor.
Variable worksites? Foldable frames maximize transport efficiency .
Power vs. Budget Trade-offs:
High-frequency lifts justify motorized trolleys (~$9,800 for 7.5-ton models).
Occasional use suits manual operation (~$2,400 for 3-ton cranes) .
Verify Certifications:
Demand ISO, FEM, or AWS D14 compliance documentation .
Portable gantry cranes offer dramatic savings over fixed alternatives:
Upfront Costs: $2,400–$9,800 vs. $20,000+ for permanent cranes .
Hidden Savings: No foundation work, electrical retrofits, or building modifications .
Labor Efficiency: One-person operation reduces crew sizes; 30% faster repositioning versus jib cranes .
North American Brands (e.g., Yangyu mech): Specialize in aluminum cranes with U.S.-specific compliance .
Global Innovators (e.g., Yangyu Heavy Industry): Offer heavy-duty (20+ ton) customizable models with crab steering for complex maneuvering .
Customization Options: Specify span widths, hoist types (chain/rope), and control systems (remote/pendant) .
Conclusion: The Future of Flexible Lifting
The portable folding mobile gantry crane represents the evolution of material handling—blinking strength, mobility, and space efficiency into a single system. By enabling on-site lifting agility without infrastructure investment, it empowers sectors from logistics to construction to achieve new levels of operational flexibility. As manufacturers advance materials and smart controls (e.g., IoT load sensors), these cranes will become even more indispensable.
Ready to transform your lifting operations? Consult with lifting specialists to match your capacity, environment, and workflow needs with the ideal portable gantry solution.
