In modern industrial facilities, the efficient utilization of three-dimensional space is crucial for enhancing production efficiency. The column-mounted Jib crane is precisely the solution for this purpose. Unlike traditional bridge cranes, the track system of the column-mounted crane is directly installed beneath the roof steel structure of the factory building. The lifting trolley runs along the lower edge of the track, achieving zero occupation of the ground space. This unique design makes it the preferred equipment in many manufacturing, assembly, and storage scenarios.
The column-mounted Jib crane is not a single device, but rather a system that can be highly configured according to the requirements. Its main types include:

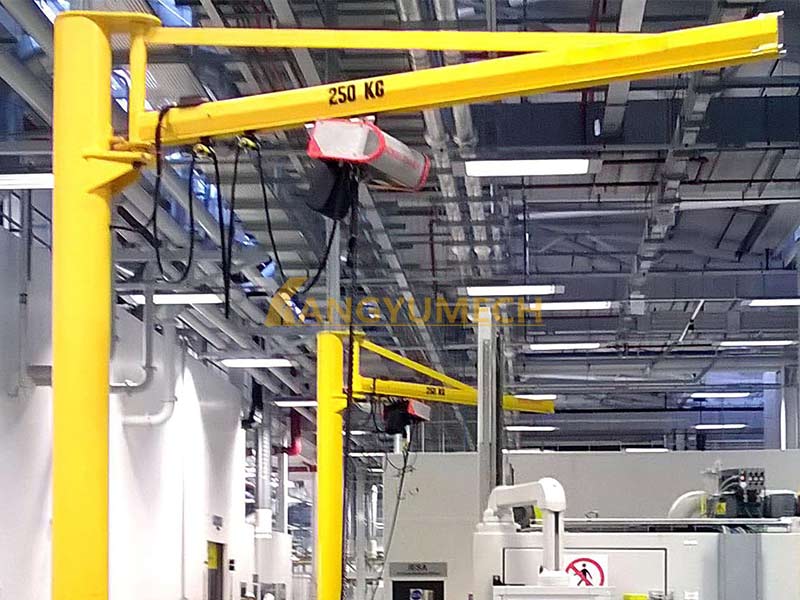

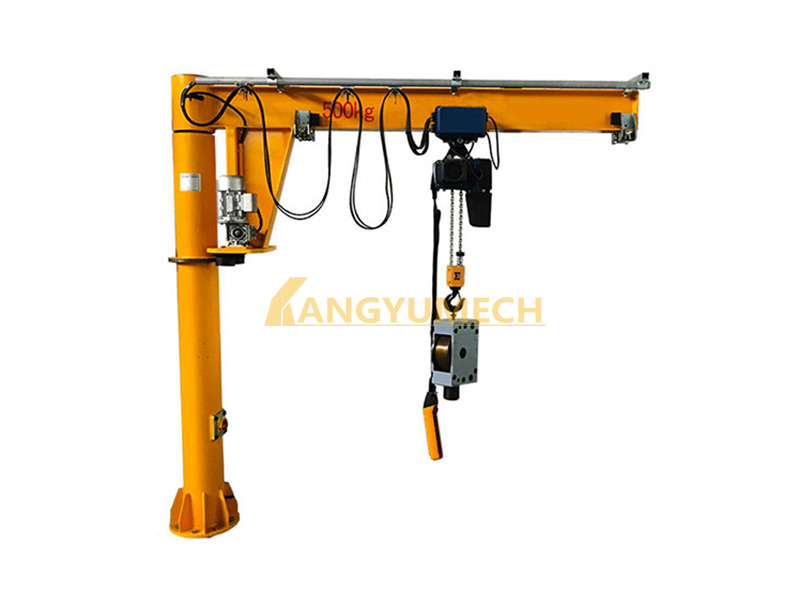

Single-Beam Column-Mounted Crane
This is the most cost-effective and efficient basic solution. Using a steel I-section as the main beam, the structure is lightweight and installation is quick. It is typically suitable for applications with a lifting capacity of no more than 20 tons and a service range within medium spans in workshops. Its advantages lie in high cost-effectiveness, enabling it to provide basic fixed-point lifting services for production lines or warehouses. It is particularly suitable for situations where budget constraints exist but there is a need to improve handling efficiency.
Double-Beam Column-Mounted Crane
When higher load requirements or larger spans are needed, the double-beam structure becomes the inevitable choice. The two main beams provide excellent stability and rigidity, capable of bearing heavier loads (up to several hundred tons) and achieving greater lifting heights. The double-beam system is usually equipped with more powerful drives and control systems, operating extremely smoothly with high precision. It is a key component in demanding industrial environments such as heavy equipment manufacturing and large component assembly.
Flexible Combined Girder Crane
This is a model of modern engineering design, typically employing high-strength box-type beams or combined truss structures. Its core advantage lies in extreme flexibility. The track network can be intricately arranged according to the production process, including straight lines, curved tracks, switches, and lifting sections, allowing the lifting trolley to operate almost without blind spots throughout the entire factory’s three-dimensional space. This system is particularly suitable for modern flexible production lines and automated storage centers with complex process flows and materials that need to be transferred across regions and workstations.
Thanks to its space-saving and highly flexible features, column-mounted cranes play a crucial role in numerous industries:
Automobile and equipment assembly line: In the vehicle assembly workshop, column-mounted cranes can precisely lift large components such as engines and axle housings to the designated positions on the production line, enabling efficient assembly line operations.
Warehousing and logistics center: In automated vertical storage warehouses or distribution centers, flexible combined beam systems can seamlessly connect with automated stackers and conveyor lines to complete the entire process of automated handling of raw materials, in-stocking, and finished product outloading.
Aerospace and precision manufacturing: For the assembly of aircraft components or precision instrument workshops with extremely high requirements for handling accuracy and environmental cleanliness, customized column-mounted crane systems can provide stable and dust-free lifting solutions.
Maintenance workshop and testing center: In equipment maintenance rooms or product testing areas, cranes need to cover a wide area to serve different workstations. Column-mounted systems can provide comprehensive coverage to meet the needs of irregular maintenance and lifting.
When you invest in a column-mounted gantry crane system, you are not merely choosing a piece of equipment. You are selecting a long-term productivity partner. Yangyumech, leveraging its profound industry experience and solid engineering technology, is dedicated to providing customers with reliable, efficient, and highly valuable solutions.
Our core advantage lies in the perfect combination of durable and reliable quality with reasonable costs. We understand that reliable equipment is the guarantee of production continuity. Therefore, we strictly control the design process and use high-quality steel and core components (such as motors, reducers, and electrical control systems) that have been verified by the market for a long time to ensure that each crane has a long lifespan and low failure rate.
Automotive Parts Manufacturing Project: We designed and installed a flexible combined-beam-mounted crane system covering the entire production area for a globally renowned automotive parts supplier. This system integrates multiple lifting points and automatic transfer functions, successfully reducing the material transfer time at different workstations by 30%, significantly improving the overall production rhythm of the line.
Heavy Equipment Assembly Workshop Project: We provided a double-beam column-mounted crane for a large construction machinery manufacturer with a lifting capacity of 75 tons and a span of over 30 meters. We particularly strengthened the structural rigidity and operational stability design to enable it to precisely and safely lift large excavator chassis and upper frames, earning high praise from the customer.
Our products and services have been exported to dozens of countries around the world, assisting customers in different regions to optimize their material handling processes. We believe that true success stems from the win-win cooperation between both parties.
Please feel free to contact us and share your specific needs and challenges. The professional team of Yangyumech crane will tailor the most suitable crane solution for you, helping you increase space utilization, optimize production logistics, and jointly achieve efficient and sustainable growth.
