Henan Yangyu Heavy Industry revolutionizes workstation efficiency with its wall-mounted jib cranes – engineered solutions that deliver precision lifting where floor space is limited. ISO 9001-certified and backed by B-level special equipment licenses, these cranes transform underutilized vertical space into high-productivity zones for manufacturing, warehouses, and maintenance bays.
Table: Yangyu Wall Jib Crane Configurations
| Parameter | Standard Range | Premium Options |
|---|---|---|
| Capacity | 0.25–7.5 tons | Up to 10 tons |
| Reach | 2–8 meters | 10m (custom) |
| Rotation | 180°–270° | 360° (ceiling-mounted) |
| Duty Class | A3–A5 | A6 (Continuous) |
| Hoist Speed | 5/8 m/min (dual) | VFD 0.5–20 m/min |
| Headroom | 150–300 mm | Ultra-slim 100 mm |
| Structural Safety | 4:1 design margin | FEA-optimized brackets |
1. Compact Manufacturing Cells
Automotive Parts: 270° rotation for multi-machine service
CNC Machining: ±1 mm positioning accuracy
Press Operations: 250% overload protection
2. Warehouse Loading Bays
Container Unloading: Corrosion-resistant models (300μm epoxy)
Pallet Handling: Integrated weighing systems (±0.5%)
3. Maintenance & Repair
Engine Hoisting: 360° rotation kits
Hazardous Areas: ATEX Zone 2 explosion-proof variants

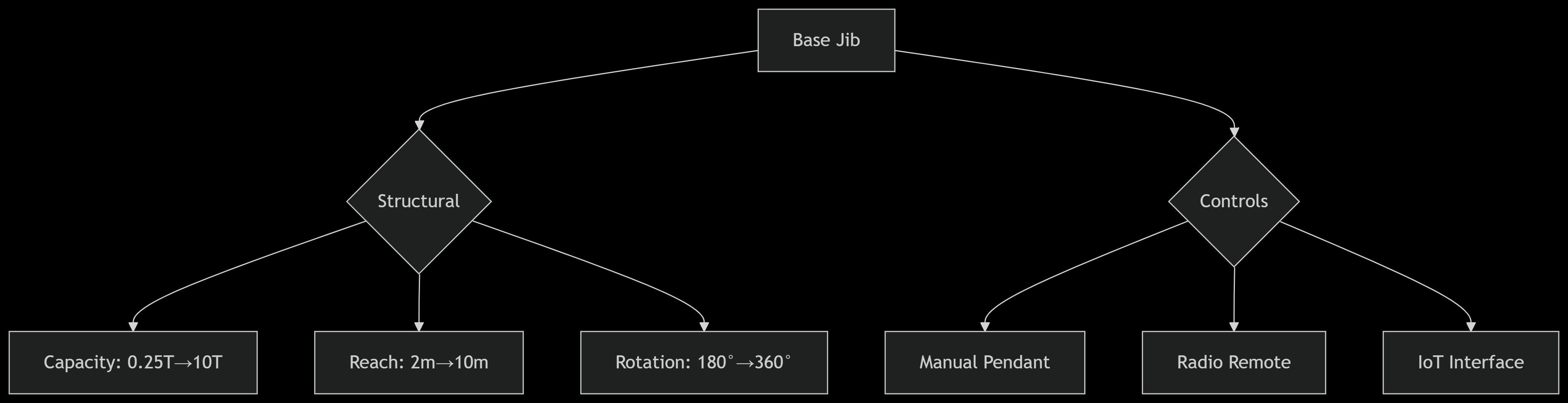

Yangyu’s bolt-together system enables field upgrades:
Triple-Protection Architecture:
Mechanical Safeguards
Dual-disc electromagnetic brakes
Shear pin overload protection (110% cutoff)
Electronic Monitoring
Real-time load moment indicator
Encoder-based rotation limits
Structural Integrity
UL-certified mounting brackets
Non-destructive testing (NDT) on welds
| Model | Price Range | ROI Period | Space Savings |
|---|---|---|---|
| YLJ-1T (3m) | $2,300–$3,100 | <6 months | 4.2 m² |
| YLJ-5T (6m) | $5,800–$7,900 | 8 months | 11 m² |
| Custom 7.5T (8m) | $8,500+ | 11 months | 18 m² |
*Compared to floor-mounted alternatives requiring 2× clearance space*
Arctic Package: -40°C operation with heated bearings
Tropical Package: 95% humidity resistance
Corrosive Environments: Stainless steel components (AISI 316)
Clean Rooms: Electropolished surfaces with particulate filters
Automation-Ready Features:
Pre-installed interfaces for Siemens/Allen-Bradley PLCs
IoT-enabled models include:
Predictive maintenance alerts
Usage analytics dashboard
Remote diagnostics via YangyuCloud®
Challenge: Service 8 CNC machines in 120 m² workshop with 3m ceiling
Yangyu Solution:
3× 2.5T wall jibs (5m reach, 270° rotation)
Radio remote + encoder positioning
Results:
55% faster tool changes
Zero floor space consumed
Full ROI in 5 months
Free Rotation Upgrade: 270° → 360° on 5T+ models
Fast-Track Delivery: 12 days for standard configurations
Safety Bundle: $850 value – includes overload limiter + LED work lights
Financing: 0% interest for orders >$15,000
Space Transformation
Convert unused wall space into productive lifting zones
Certified Safety
Full compliance with ISO 14398, ASME B30.11, EN 13157
Future-Proof Design
Modular capacity/tech upgrades without replacement
Direct Manufacturer Pricing
30–45% below European equivalents
Optimize Your Workspace Today!
✅ 3D Layout Simulation: Send floor plans for virtual installation
✅ On-Site Surveys: Available in 17 countries
✅ Risk-Free Trial: 24-month performance warranty
Contact Yangyu Engineers:
📱 WhatsApp: +86 18595917980
📧 Email: yangyumech@gmail.com
🌐 Online Configurator: https://www.yangyumech.com/column-mounted-jib-crane.html
Yangyu Heavy Industry | B-Level Special Equipment License TS2410372025 | ISO 9001:2015 Certified
