For small and medium-sized workshops, machine shops, and assembly lines, finding the right lifting equipment often feels like a trade-off. Overhead bridge cranes require permanent runway beams and a high upfront investment, while gantry cranes take up too much floor space for tight work areas.
This is where mobile jib cranes step in—portable, versatile lifting tools designed to handle 0.5 to 10 ton loads with 360-degree rotation, fitting seamlessly into spaces where larger cranes can’t operate. As demand for flexible material handling grows, more facility managers are turning to mobile jib cranes for their ergonomic benefits, space-saving design, and cost-effectiveness.

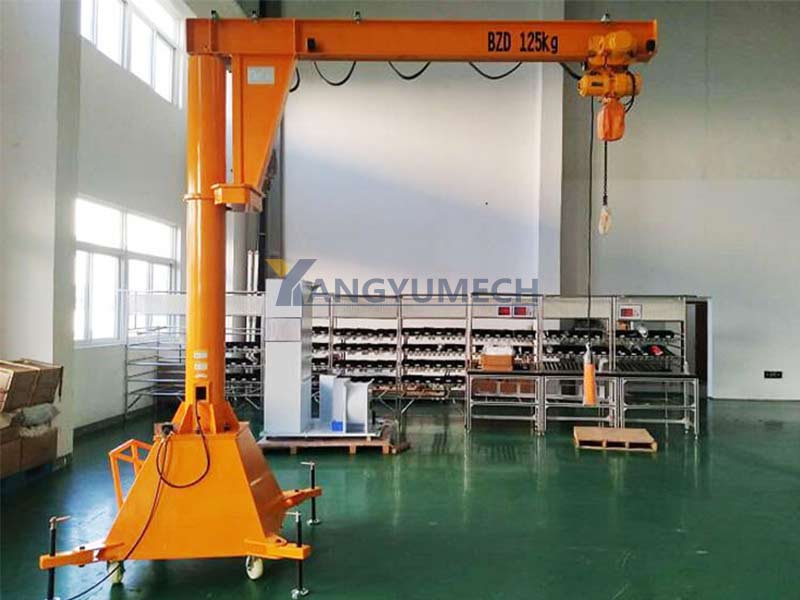

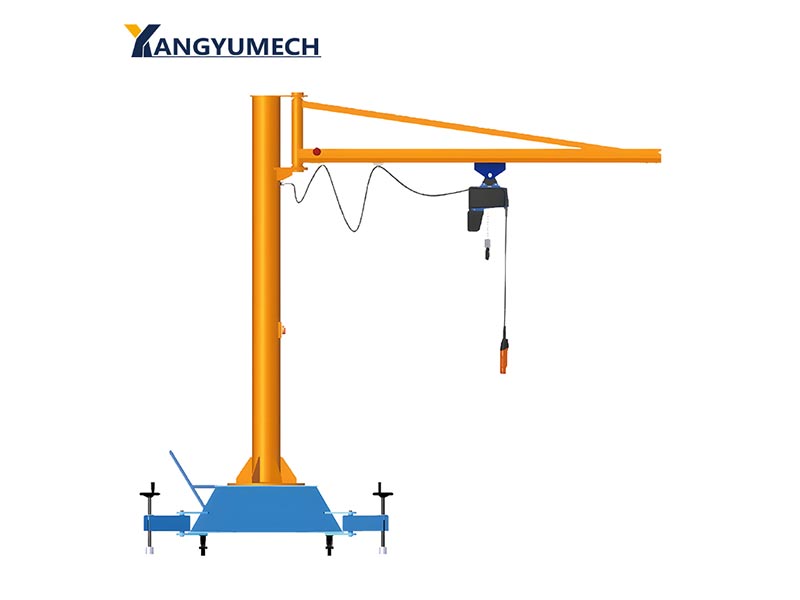

At their core, mobile jib cranes are designed for on-demand, precise lifting in dynamic work environments. The structure consists of a vertical mast mounted on a heavy-duty base with industrial casters, a horizontal jib arm (available in fixed or articulating configurations), and a hoist (manual chain, electric chain, or wire rope) mounted on the arm.
The casters allow the entire unit to be moved easily between workstations, while the jib arm rotates 360 degrees to cover a wide working radius without repositioning the base. This makes them ideal for tasks that require lifting, positioning, and moving loads across a small to medium area without the need for permanent installation.
Most standard mobile jib cranes for industrial use range from 1 ton to 5 ton capacity, with heavy-duty models available up to 10 tons for specialized applications. Electric hoist options provide faster lifting speeds and reduced operator fatigue, while manual chain hoists are preferred for low-frequency use or areas without reliable power access. Articulating jib arms add extra flexibility, allowing the arm to bend around obstacles or reach into tight corners—a key feature for assembly lines and maintenance bays.
The versatility of mobile jib cranes means they are used across a wide range of industries, each with unique lifting needs. In machine shops and workshops, a mobile jib crane for workshop use is a staple for loading and unloading CNC machines, moving heavy tooling, and performing routine maintenance on equipment like lathes and mills.
Unlike overhead cranes, they don’t require modifying the building structure, making them a cost-effective choice for leased facilities or small workshops with low ceiling heights.
For assembly line operations, articulating jib cranes for assembly lines are increasingly popular for ergonomic reasons. Workers can lift heavy components like engine parts, electronic enclosures, or furniture frames into position without straining, reducing workplace injuries and speeding up production cycles.
The portable design also means the crane can be moved to different sections of the line as production needs change, avoiding the need for multiple fixed lifting points.
In small warehouses and logistics hubs, portable jib cranes for small warehouses solve a common problem: lifting goods in narrow aisles where forklifts can’t maneuver. They are used to load delivery trucks, move palletized goods from racking to packing stations, and handle oversized items that don’t fit on standard conveyors. Their compact footprint means they take up far less space than gantry cranes, leaving more room for inventory storage.
Maintenance and repair teams also rely heavily on mobile jib cranes for on-demand lifting tasks. Whether moving a 3-ton pump in a water treatment plant, replacing a motor in a manufacturing facility, or lifting HVAC components during building maintenance, these cranes can be rolled directly to the work site and set up in minutes. This eliminates the wait time for scheduling larger crane rentals, keeping downtime to a minimum.
When selecting a mobile jib crane, the first step is to calculate your maximum lift capacity, including the weight of the load plus any lifting attachments like spreader bars or hooks.
For most SMEs, a heavy duty mobile jib crane 1 ton to 5 ton capacity covers 90% of use cases, with 3-ton models being the most popular balance of capacity and portability.
Consider the arm length needed to reach your work areas—longer arms cover more space but reduce maximum capacity, so it’s important to match the arm length to your typical load size.
Hoist type is another key consideration: electric chain hoists with mobile jib cranes are better for frequent use, offering smooth, precise positioning, while manual hoists are sufficient for occasional lifts.
Caster selection also matters: polyurethane casters work best on smooth concrete floors, while pneumatic casters are needed for rough outdoor surfaces or uneven shop floors.
Always check for certifications like CE, ISO 9001, and OSHA compliance to ensure the crane meets safety standards for your region.
As a leading industrial crane manufacturer with over 20 years of experience, Yangyumech offers a full range of mobile jib cranes tailored to your specific needs.
Our product line covers 0.5 ton to 10 ton capacities, with fixed or articulating jib arms, manual or electric chain hoists, and customizable options including stainless steel, explosion-proof, and low-headroom configurations.
All our mobile jib cranes are CE certified and built to FEM and ISO standards, ensuring long service life even in demanding industrial environments.
We pride ourselves on offering competitive mobile jib crane prices without compromising on quality—our direct manufacturer model cuts out intermediary markups, with standard 1-ton models starting at accessible rates for global buyers.
Every crane comes with a 12-month warranty, 24/7 technical support, and rapid spare parts delivery worldwide. Whether you need a single crane for a small workshop or a fleet for a large assembly plant, our engineering team can provide custom configurations to match your workflow.
For a free quote or to discuss your mobile jib crane requirements, contact our sales team today at sales@yangyumech.com or +86-157-3677-5771. Let Yangyumech provide the flexible lifting solution your workspace needs.
