When lifting operations demand serious capacity across wide spans, a single gantry crane often reaches its practical limits. That is when engineers and plant managers turn to the double gantry crane — a heavy-duty lifting system built to handle loads that would overwhelm lighter equipment. With two supporting legs and a rigid double-girder bridge structure, this machine covers the full range of heavy industrial lifting, from steel coil handling to large-scale fabrication and outdoor cargo operations.

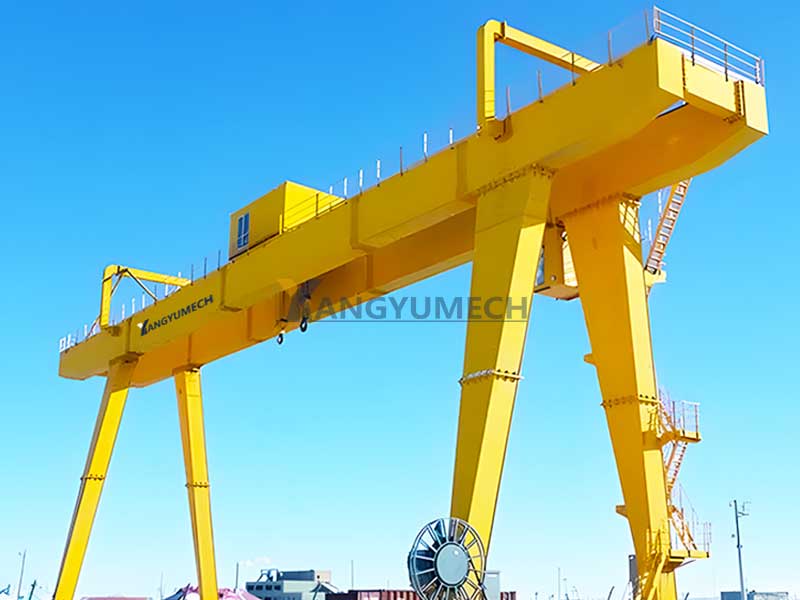

The heavy-duty double gantry crane earns its reputation in environments where load weights are consistently high and spans are measured in double digits. Steel mills and metal production facilities represent one of the most demanding applications. A 100 ton double gantry crane handling hot-rolled steel coils or structural sections across a wide bay is a standard configuration in modern steel plants. The twin-leg design distributes load forces evenly, which is critical for off-center loads common in steel processing.
Shipbuilding yards and port terminals represent two more sectors where the industrial double gantry crane is a standard piece of equipment. Shipyards use them for block erection and heavy section positioning, while rail-mounted double gantry cranes in container terminals handle stacking across multiple rows from a single travel lane.
Heavy fabrication shops, precast concrete plants, and wind energy production facilities round out the most common double gantry crane lifting applications. For payloads above 50 tons across spans exceeding 20 meters, this crane type is typically the most cost-effective option compared to a full overhead runway system.
The double leg gantry crane is the foundational configuration — two vertical support legs, each on its own rail track, connected by a rigid double girder gantry crane bridge structure. This is the standard heavy industrial model and covers the broadest range of capacities and spans. The double leg design also simplifies facility floor requirements, distributing loads evenly rather than concentrating them at a single runway beam anchor.
A rail-mounted double gantry crane extends the working envelope further by traveling along fixed tracks that can span 50 meters or more. This makes it well suited for long production bays and outdoor storage lanes where repetitive travel patterns are part of the daily operation.
The outdoor double gantry crane variant is specifically configured for weather exposure — IP54 or higher motor protection, corrosion-resistant paint systems, and anti-derailment devices are standard considerations for equipment operating in open-air environments. Wind loading calculations also factor into the structural design, which means the girder section and leg geometry differ from indoor models.
In some configurations, a double gantry crane can be paired with a grabs, magnets, or custom lifting beams to handle specific material types — a flexibility that makes it adaptable across multiple industries rather than being limited to a single application.
When reviewing a double gantry crane for sale, these parameters define what the equipment can and cannot do for your operation:
The double gantry crane capacity ranges from 20 tons in standard models up to 600 tons or beyond in specialized heavy-lift configurations. Most industrial units fall between 50 and 200 tons.
The double gantry crane span — the distance between the two rail tracks — typically runs from 12 meters to over 40 meters, with wider spans requiring deeper girder sections and heavier structural steel.
These double gantry crane parameters are specified together to ensure the machine fits the facility layout and load profile.
Lift height under the hook typically ranges from 9 meters to 30 meters. Duty class under FEM or ISO standards ranges from M3 to M7. These double gantry crane specifications are documented in the manufacturer quotation and form part of the procurement specification.
Travel speeds vary by application. Main travel (cross-yard) typically operates between 20 and 45 meters per minute, while hoist lifting speeds range from 1 to 8 meters per minute depending on the capacity and hoist type selected.
Power supply for most industrial installations is 380V / 50Hz three-phase, with 460V / 60Hz available for export configurations.
The difference between a reliable double gantry crane and a problematic one often comes down to the manufacturer’s engineering depth. A credible double gantry crane manufacturer China-based should provide detailed calculations for structural steel, finite element analysis for the girder section, and load test documentation for every unit before shipment.
Certifications matter. Look for CE marking for European markets, FEM compliance for mechanical endurance ratings, and ISO 9001 for the quality management system. A manufacturer who can share third-party inspection reports, weld procedure specifications, and non-destructive testing records demonstrates transparency that protects the buyer.
Lead time, logistics experience for export shipments, and the availability of spare parts in your region are practical factors that affect the total cost of ownership well beyond the initial purchase price.
Yangyumech — accessible at yangyumechah.com — is a professional manufacturer and exporter of industrial lifting equipment with extensive experience producing double leg gantry cranes, heavy-duty double gantry crane systems, and custom crane configurations for clients across the steel, port, shipbuilding, and energy sectors.
Every Yangyumech double gantry crane is engineered to international standards, undergoes full load testing before dispatch, and ships with complete documentation including inspection certificates, operation manuals, and wiring diagrams. The engineering team works closely with procurement managers and plant engineers to configure capacity, span, and lift height to match the actual operating conditions — not simply to match a catalog number.
Whether you need a 100 ton double gantry crane for a steel mill reheat bay, a rail-mounted outdoor double gantry crane for a container terminal, or a custom heavy-lift configuration for a special project, Yangyumech has the manufacturing capability and export experience to deliver equipment that performs from day one.
Yangyumech offers competitive double gantry crane pricing, and every quotation includes complete double gantry crane specifications and transparent double gantry crane price breakdowns. Contact the Yangyumech sales team for configuration recommendations and CIF or FOB pricing tailored to your destination port.
